1/10 RC Comical Frog Kit, WR-02CB Chassis

1/10 RC Comical Frog Kit, WR-02CB Chassis

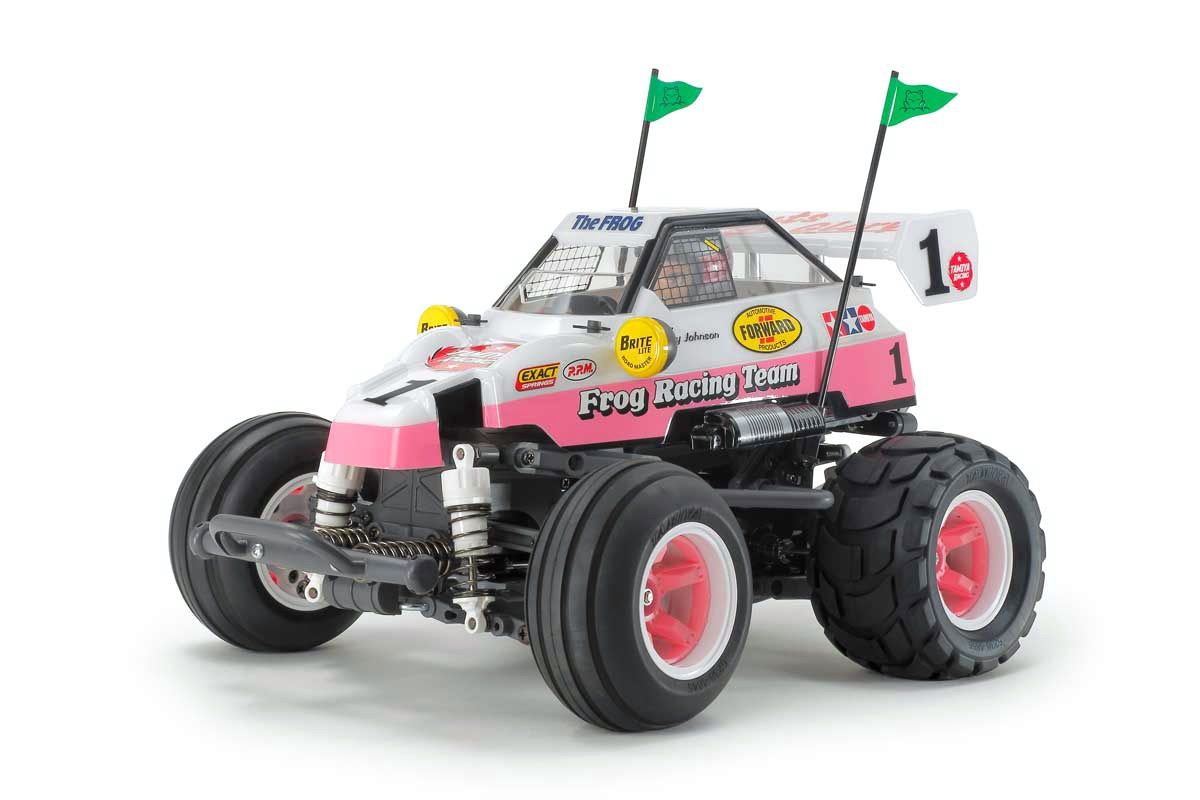

Image shows item assembled and painted for reference purposes.

The original FROG needs little introduction. It was a Tamiya legend which inspired legions of fans since the 1980s. For many, it was their very first introduction into the world of radio control assembly kits. The original FROG is still among Tamiya's best-selling kits to this day. Now the legend is re-imagined as the Comical FROG, with a new body inspired by the famous original. The re-imagined body sits on a new and dedicated variant of the proven off-road chassis: the WR-02CB.

The WR-02CB chassis is an exciting chassis at home on- and off-road, providing smooth driving and the potential for exciting wheelies! It features a pre-assembled gearbox with motor already attached to save time in the assembly process. Long suspension arms and CVA oil dampers make for excellent off-road performance, while under guard and side guards give great protection. A rear wheelie bar helps support the model when it leans back, maintaining a fun wheels-in-the air stance as the model plunges forward. Pink and white 2-piece wheels are joined by bubble tires (front: ribbed, rear: round block) for a fun look and drive.

Require to Complete: 2-channel radio, steering servo, 7.2-volt battery pack with compatible charger, and TAMIYA PS Spray Paint. NOTE: Must use round shape type battery pack. Square shaped batteries will not fit the battery compartment.

Features:

• Rear poles and flags, plus rounded tires give the model a unique and bubbly look that just promises plenty of fun driving!
• The WR-02CB chassis is based upon the proven WR-02. Hammer on the throttle for thrilling wheelies to impress your friends.
• A smooth drive awaits with 4-wheel double wishbone suspension featuring long arms and CVA oil dampers with multiple positions.
• The slim monocoque frame features a central position for the motor, with power transmitted by gears. Side guards offer protection.
• The kit features an assembly type figure with plenty of design options including five different styles of eye stickers.
• The Comical Frog is compatible with separately-sold 5mm LEDs and light unit, for a lit-up model that will truly look the part.

Specifications:

• 1/10 scale R/C model assembly kit
• Length: 356mm, Width: 244mm, Height: 195mm, Wheelbase: 170mm
• Tire Width/Diameter 46/95mm (Front), 56/98mm (Rear)
• Tread 189mm (Front), 186mm (Rear)
• Monocoque Frame Chassis
• 3-Bevel Differential Gear
• 2-Piece Steering Linkage
• 4-Wheel Double Wishbone Suspension
• Front and Rear CVA Oil Dampers
• Gear Ratio = 18.3:1
• Electronic Speed Control (esc): Included
• Type 540 Motor: Included
