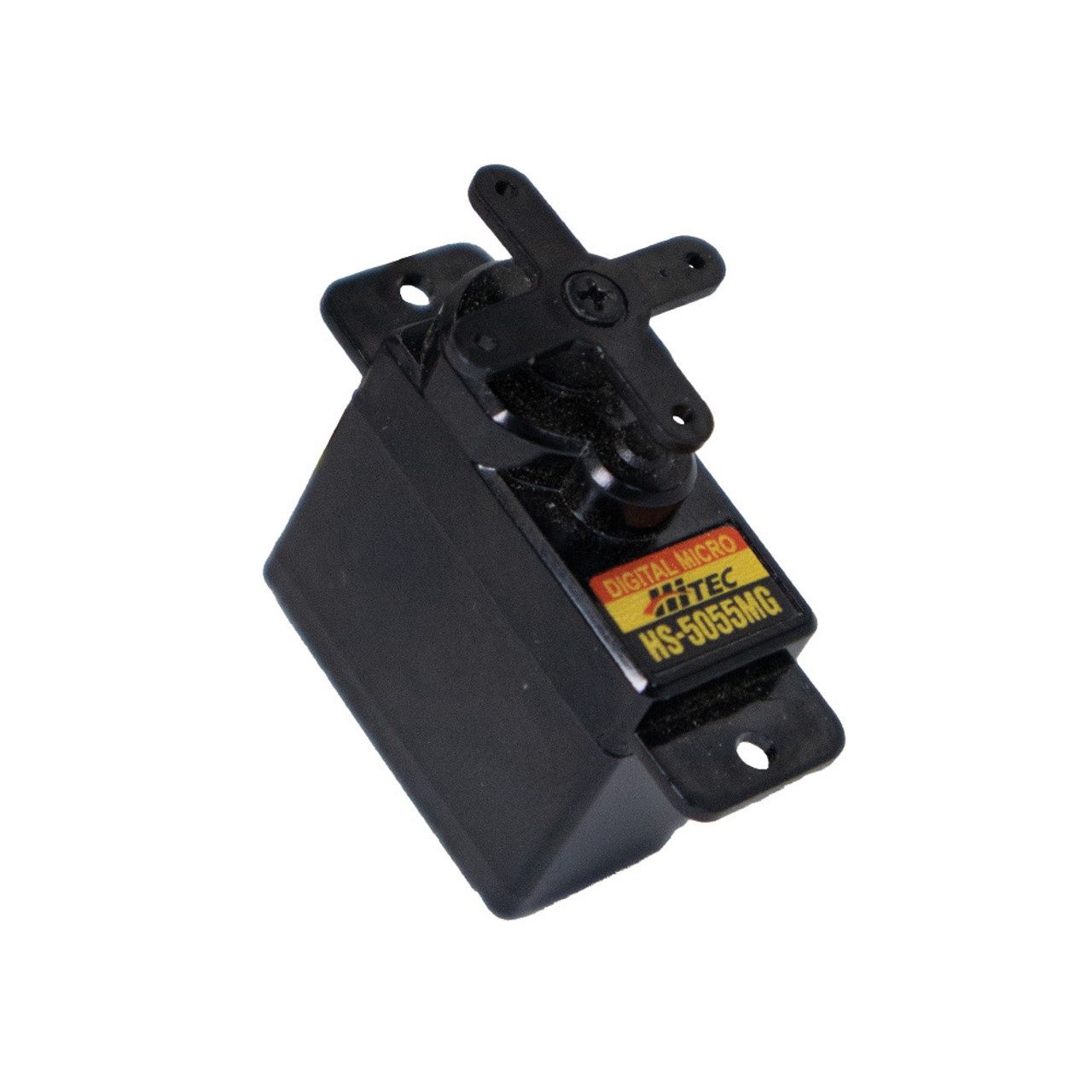

Name: HS-5055MG 11.9g Metal Gear Digital Micro Servo
Brand: HITEC
SKU: 669962350556
Price: 29.99 USD
Availability: InStock

HS-5055MG 11.9g Metal Gear Digital Micro Servo

Product Details

Brand: HITEC

The HS-5055MG takes ultra micro performance to the next level without breaking the bank. It's a perfect choice for ” smaller” high performance electric helicopters, aircraft and sail planes. It is the digital metal-geared version of the HS-55, and continues the tradition as the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service.

Features

Digital Circuit for Increased Performance and Holding Power
Smooth Coreless Motor
Rugged Metal Gears
Standard Programmable Digital Circuit
Economical, Feather, Digital Servo

Programmable Functions

End Point Adjustments
Direction
Fail Safe
Dead Band
Speed (Slower)
Data Save / Load
Program Reset

HS-5055MG Servo Specifications

Performance Specifications
Operating Voltage Range (Volts DC)	4.8V ~ 6.0V
Speed (Second @ 60°)	0.20 ~ 0.17
Maximum Torque Range oz. / in.	18 ~ 22
Maximum Torque Range kg. / cm.	1.3 ~ 1.6
Current Draw at Idle	8 mA
No Load Operating Current Draw	120 mA
Stall Current Draw	700 mA
Dead Band Width	6 µs
Physical Specifications
Dimensions (Inches)	0.89 x 0.45 x 0.94
Dimensions (Metric)	22.8 x 11.6 x 24.0
Weight (Ounces)	0.33
Weight (Gram)	9.5
Circuit Type	G1 Programable Digital
Motor Type	3 Pole Metal Brush Ferrite
Gear Material	Metal
Bearing Type	None
Output Shaft (type / Ømm)	Feather 15
Case Material	Plastic
Dust / Water Resistance	N / A
Connector Gauge (AWG) / Strand Count	28 / 20
Radio Control Applications
Parkflyer	< 36 oz.
Sport Plane	20 - 35 oz.
Sailplane	<2 meter / DLG
3D Performance	Foamie
Scale	N / A
Electric Helicopter	200mm
Gas Helicopter	N / A
On Road	N / A
Monster Truck	N / A
Buggies	N / A
Truggies	N / A
Short Course / Truck	N / A
Crawlers	N / A
Sail Boat	N / A
Power Boat	1/18th
