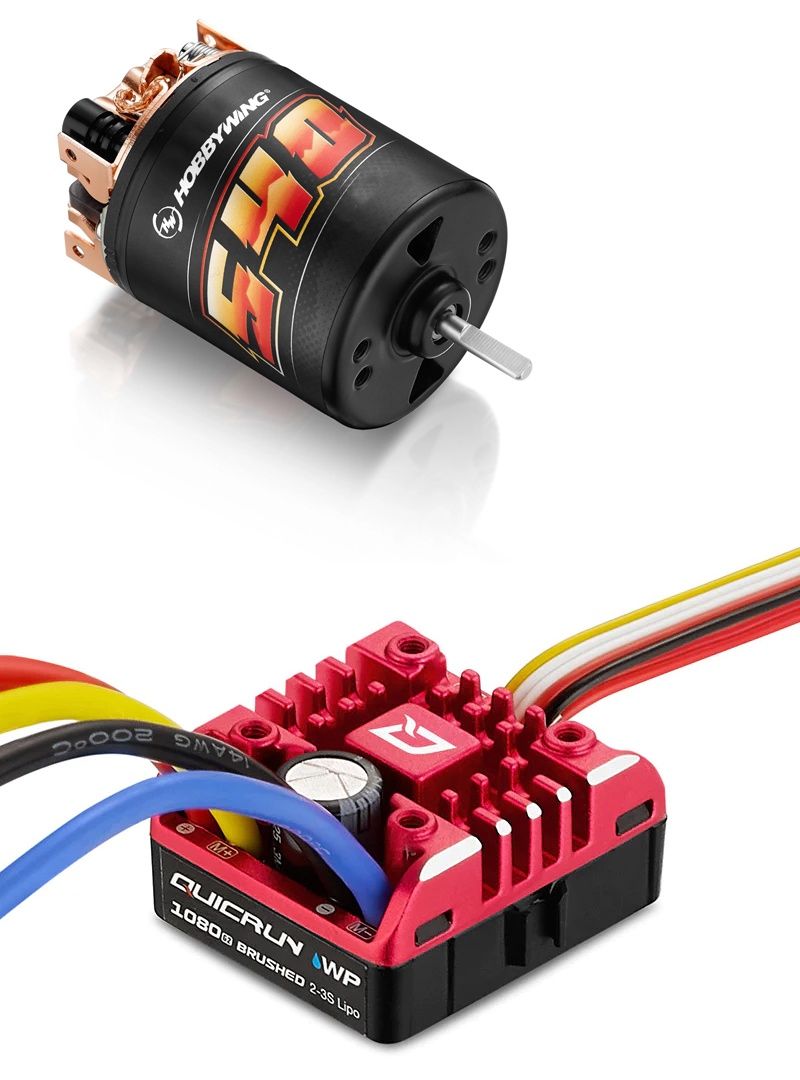

QuicRun 1080 G2 ESC with Brushed 540, 30T Motor Combo

QuicRun 1080 G2 ESC with Brushed 540, 30T Motor Combo

Features:

• Fully Water-proof and dust-proof, suitable for all-weather races.
• Small in size, with a built-in capacitor module.
• Four operating modes available (Real Car Operating / FWD with Brake / FWD and REV with Brake / FWD and REV)
• In the first "real car mode" The direction of the motor is switchable in real time by using the idle channel on the remote control.
• Real-Time Adjustment of Drag Braking Force.
• 15 programmable parameter items
• PWM Frequency: 1K/2K/4K/8K/16K Adjustable
• Freewheeling (DEO) capability
• Drag brake rate in 9 levels (adjustable)
• Electronic switch
• Aluminum case for great heat dissipation
• Great current endurance capability.
• Great built-in BEC output capacity switchable 6V/ 7.4/ 8.4V
• Automatic throttle range calibration, easy to use.
• Multiple protections:
• Over Voltage Protection
• Low voltage cut-off protection for battery
• Over-heating protection
• Throttle signal loss protection, and much more

ESC Specifications:

• Brushed ESC: WP 1080 G2
• p/n: 30120202
• Waterproof: Yes
• Dual Mode: No
• Fwd Cont. / Peak Rev Cont. / Peak: 80A / 400A
• Car Applicable: 1/10 Rock Crawler
• Motor Limit: Brushed Motors 540/550 Series 2S LiPo or 5S NiMH, =10T or\RPM<3000@7.4V; 3S LiPo or 9S NiMH, =16T or RPM<2000@7.4V
• Battery: 2-3S LiPo or 5-9S NiMH
• BEC Output: 6V/7.4V/8.4V @ 4A (switch-mode)
• PWM Frequency: Adjustable 1K/2K/4K/8K/16K
• Wires: 14AWG-200mm w/ XT60 Connector
• Size/ Weight: 37.2(L)* 31.9(W)*18.4(H) (without fan)
• External Program Port: Separate Port Available
• Programming: LED Program card
• Weight*: 70.2g w/ wire and connectors

Motor Specifications:

• Model: QUICRUN Brushed 540
• PN: 30404313
• Slot: 3
• Turns: 30T
• (RPM@7.4V): 14000
• Input Voltage: 12.6V
• Diameter/ Length(mm): ɸ=36mm(1.42in) L=53mm(2.09in)
• Shaft Diameter/ Length (mm): ɸ=3.175mm(0.125in) L=16.5mm(0.65in)
• Applications: 1/10 On-road / Buggy / Crawler & 2WD Truck
• Weight: 168g
